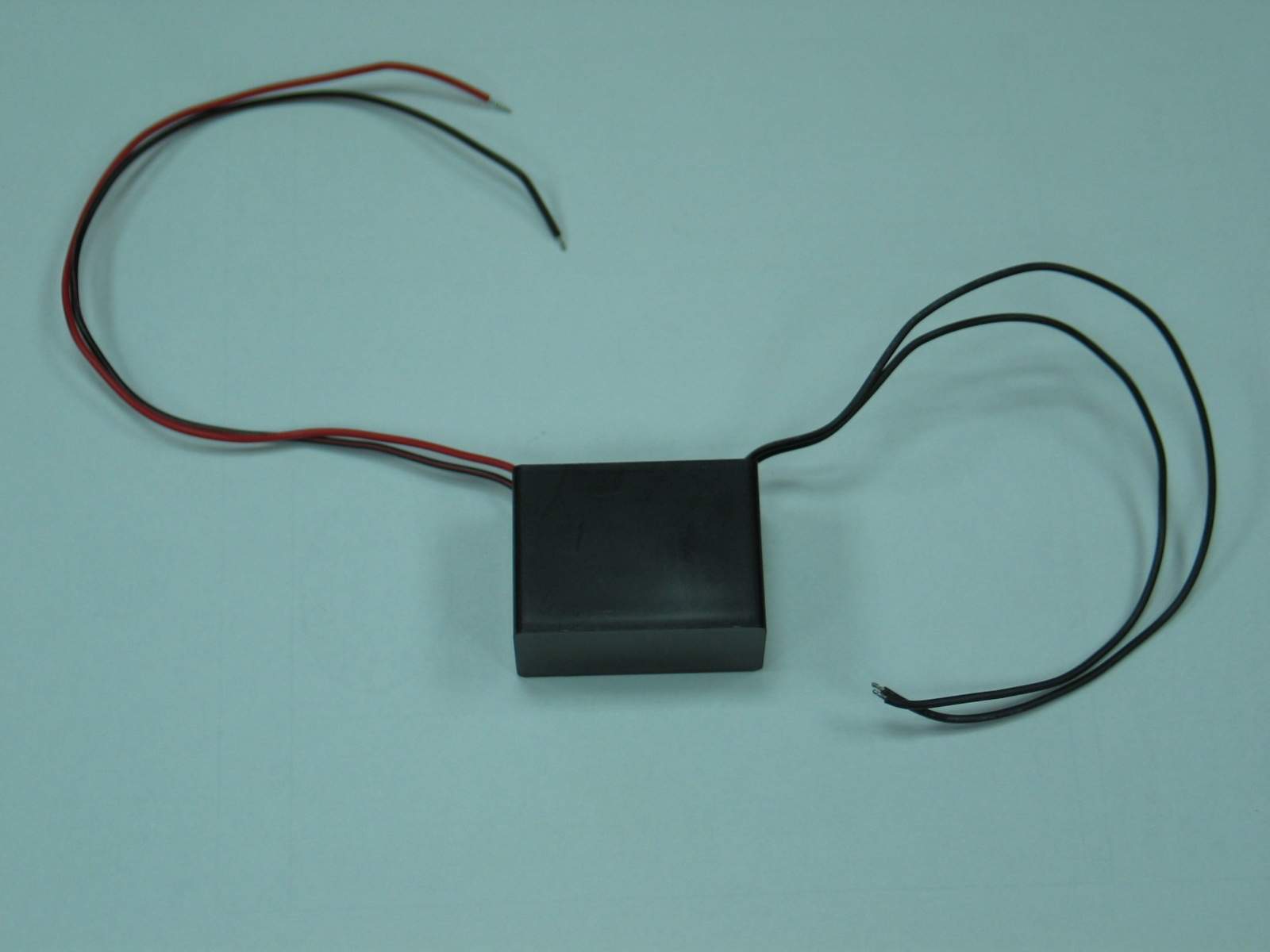

Special application LED control module :

The value of LED lights, in addition to saving energy, is most importantly that they can easily present a variety of colors and control applications

For example, multi-color changes, flicker changes, automatic dimming, etc. We provide some control methods to enable LED to play its unique characteristics, such as rainbow changing, combined with wireless applications, to produce remote control/dimming lights, or to design customized light control modules to match the customer's lighting structure and special applications, such as circular light boards, long strip light boards, thin power modules, etc. It can also be controlled with large light control systems, with consistent module design, to improve the overall value of customer lighting fixtures.

Product name code description:

MM4-LL--6---A---070-A--xxx

[A]--[B]-[C]-[D]--[E]-[F]-[G]

[A] Case item (shell size)

[B]:L<=350mA ;  LL>=350mA

[C] The number of LED's (series)

[D]:Blank=> constant current ;

A=>VR dimming ;

AP=>PWM dimming;

AR=>Remote dimming (constant current or dimming mode)

[E] Constant current (max)

[F]:A=>AC input;  D=>DC input (input voltage mode)

[G] : remark (note: such as line length, several sets of inputs...)
